TIVOLI

COMPACT WALL-MOUNTED CABINETS

This compact wall-mounted cabinet is available in different configurations and options. Easy access terminals save both time and money when cabling.

All channels can be used at full power simultaneously, with cooling controlled by variable speed fans for silent operation.

An automatic smoothing function is incorporated into Tivoli software which dramatically improves performance by increasing the digital control resolution from 256 steps to 7,500 steps through interpolation.

Ideal for small to mid size venues, museums and shopping malls.

• 12x25A, 12x16A+6x25A and 24x16A configurations available
• Connections on internal breakers or through front panel sockets
• DMX 512, 0/+10V, Sub-D25 external connectors and local control
• 150 internal cues & 250 cross fades remote controlled for architectural applications
• LCD display for parameters settings (patch,light curves, limits, test functions…)
• High resolution smoothing function (7,500 steps)
• Overvoltage detection and phase voltage display
• Single pole and neutral breakers on each channel
• Choice of RCD breaker options for full electrical protection <
• Various options available

tivolip24_dimmers_robert_juliat

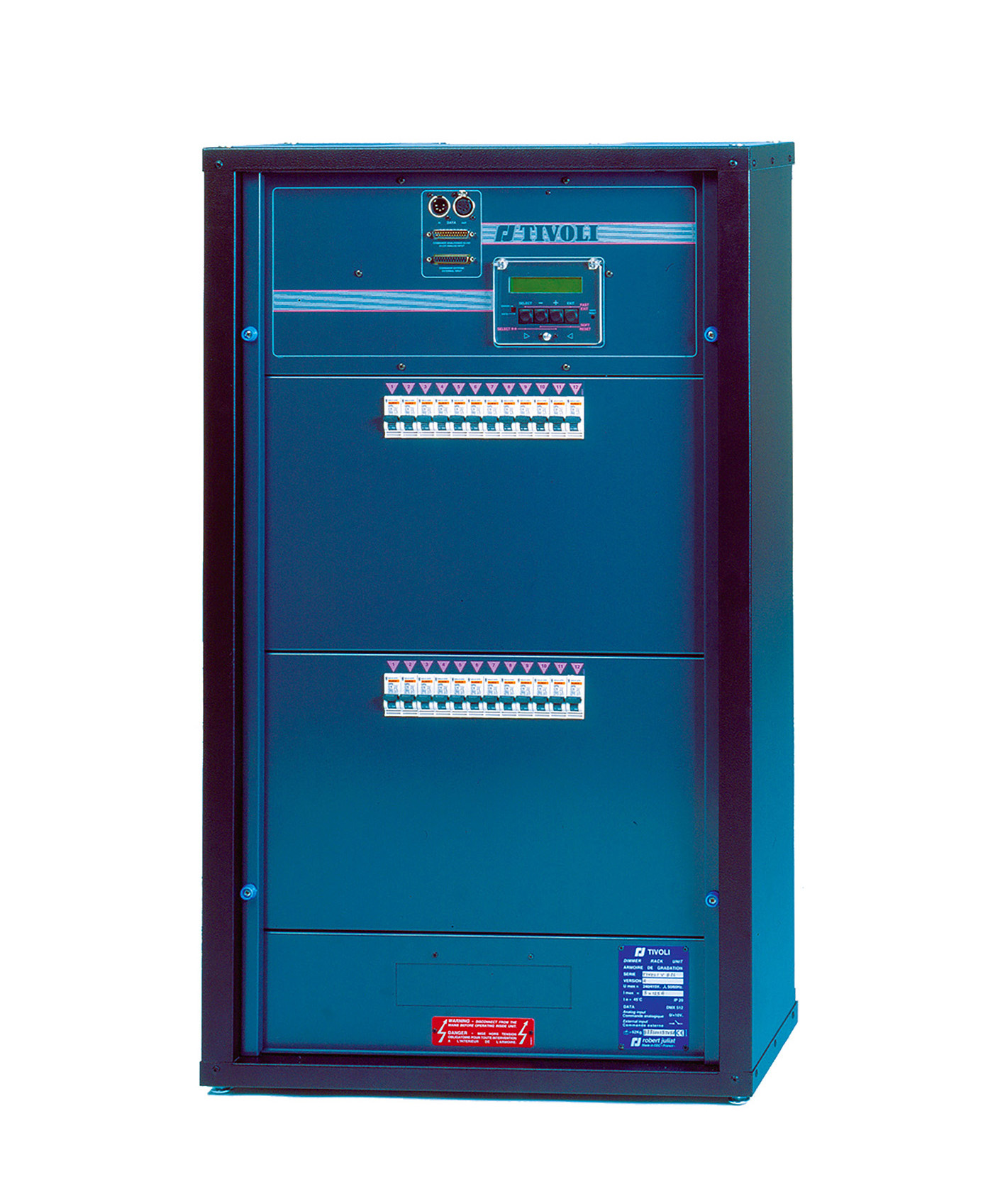

TIVOLI P24

tivolib24_dimmers_robert_juliat

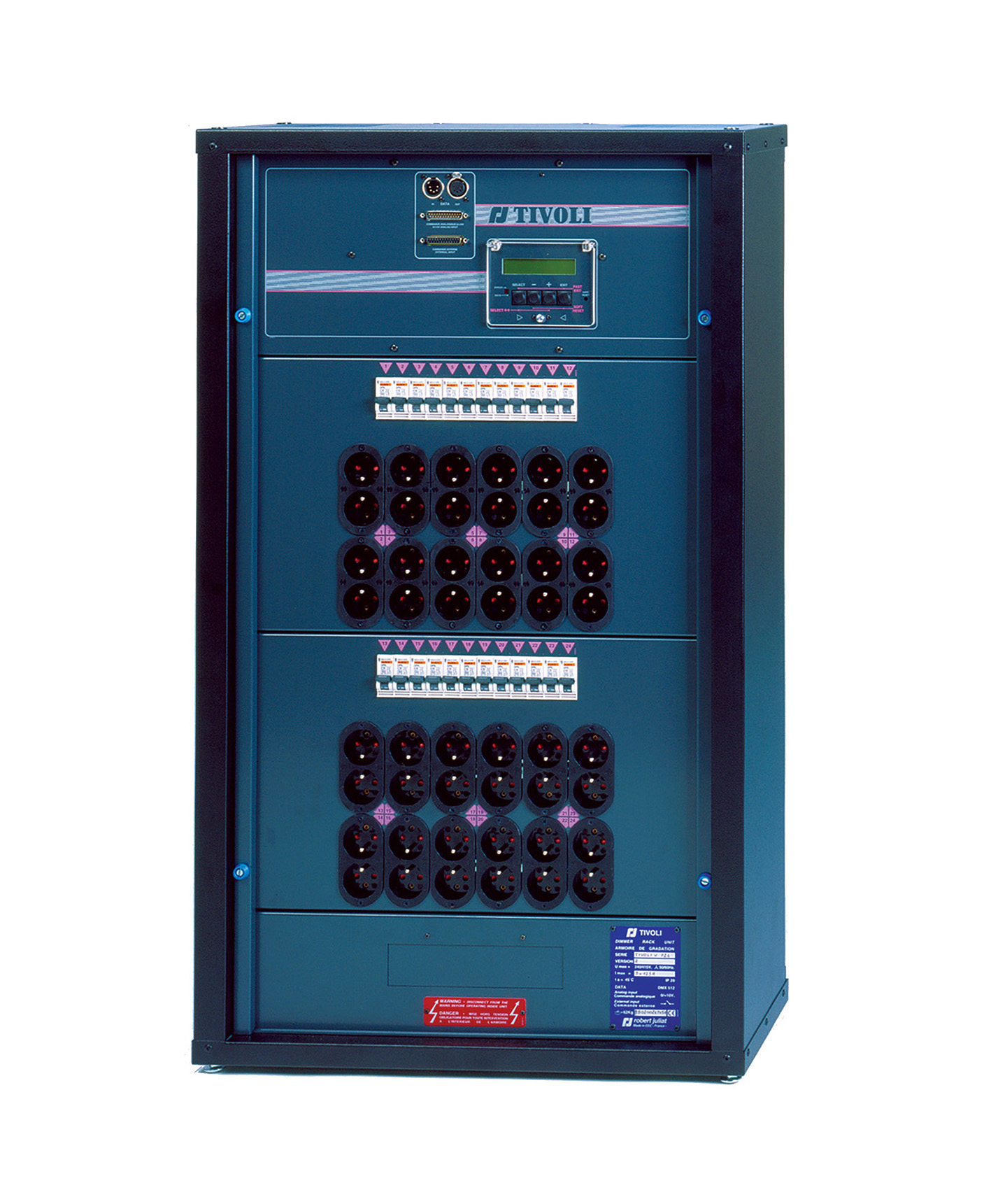

TIVOLI B24
